CNC Standard


CNC Standard
  • CNC Standard
  • CNC Standard
  • CNC Standard
  • CNC Standard

TECHNICAL
SPECIFICATIONS

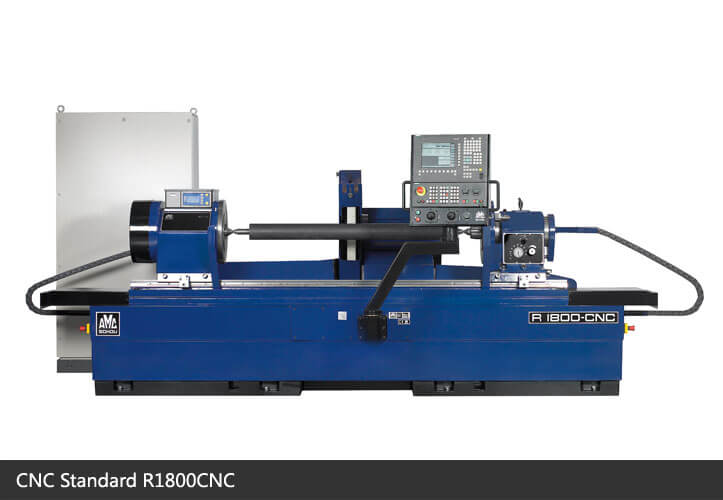

R 1800 CNC

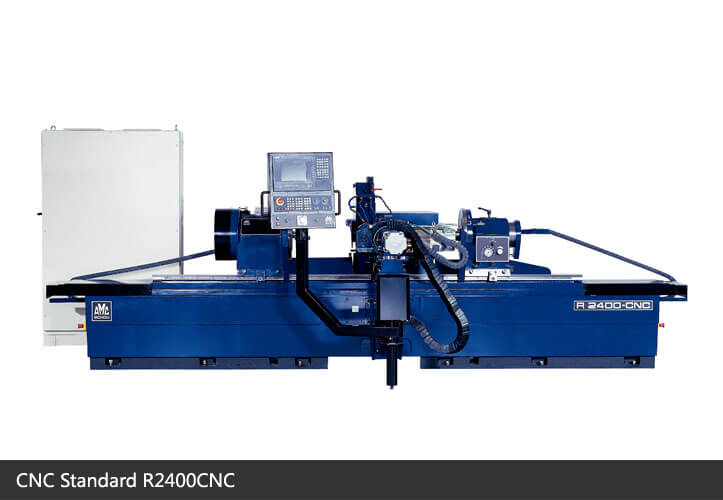

R 2400 CNC

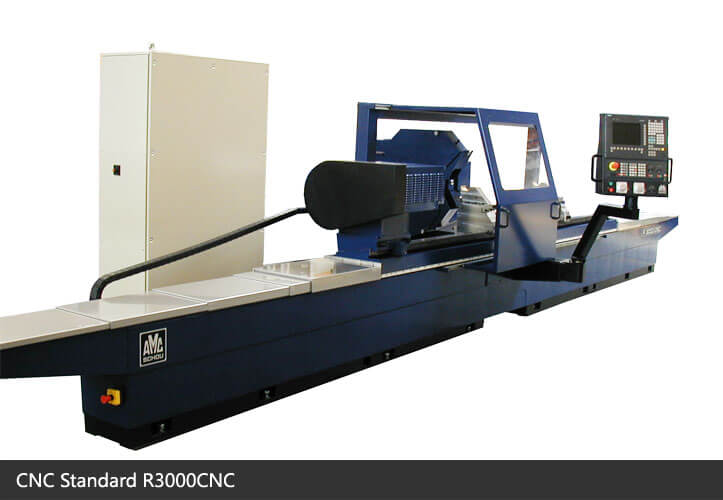

R 3000 CNC

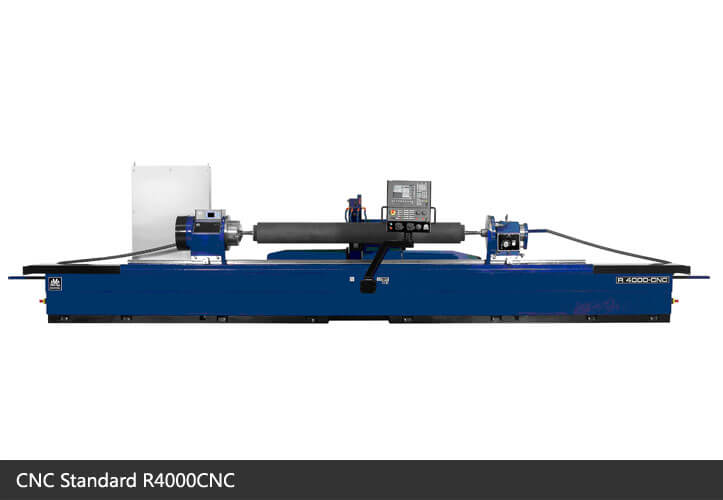

R 4000 CNC

Max. distance between chucks

mm
inch

1850
73

2450
96

3050
120

4050
160

Max. distance between centres

mm
inch

1800
71

2400
94

3000
118

4050
160

Max. swing over table

mm
inch

680
27

680
27

680
27

680
27

Max. weight of workpiece
between chucks

kg
lbs

2500
5510

2500
5510

2500
5510

2500
5510

Max. grinding length

mm
inch

1800
71

2400
94

3000
118

4000
157

Max. grinding diameter with
new grinding wheel

mm
inch

610
24

610
24

610
24

610
24

Table speeds

mm/min
inch/min

1-5000
0.04-197

1-5000
0.04-197

1-5000
0.04-197

1-5000
0.04-197

Headstock spindle speeds,
variable

rpm

2-500

2-500

2-500

2-500

Headstock motor

kW
hp

7
9.5

7
9.5

7
9.5

7
9.5

Grinding wheel motor

kW
hp

17
23

17
23

17
23

17
23

Max. grinding wheel diameter

mm
inch

813
32

813
32

813
32

813
32

Max. grinding wheel width

mm
inch

100
4

100
4

100
4

100
4

Diameter of grinding
wheel bore for hub

mm
inch

305
12

305
12

305
12

305
12

Max. tailstock quill

mm
inch

70
2.8

70
2.8

70
2.8

70
2.8

Working space
(working machine)

mm
inch

6100x2900
240x114

7800x2900
307x114

9800x2900
386x114

12800x2900
504x114

Net weight of basic machine

kg
lbs

4500
9921

5300
11684

6300
13889

7700
16976

Gross weight of basic machine

kg
lbs

5300
11684

6300
13889

7400
16314

8900
19621

We are engaged in a continuous process of improving our machines. The details associated with any descriptions,specifications and illustrations shown may thus vary without further notice.



-Travelling table design ensuring stability and accuracy for decades.

-Programmed through the Siemens 840D controller, allowing you to grind various surface contours such as cylindrical, parabolic, sine curves, crowns, convex and concave, radius, tapers, angles and multiple diameters.

-Siemens servomotors offering variable speed, high accuracy, low vibration and large torque also at low speeds.

-SKF high precision ball screws for X- and Z-axis ensuring smooth, accurate and trouble free movements of the antifriction covered table and wheel slide.

-SKF bearings in heavy-duty design in head- and tailstock ensuring smooth and trouble free rotation of even extra heavy work pieces.

-Hydrodynamic grinding wheel spindle ensuring no vibrations and no wear as the spindle is rotating on an oiled film. Runout less than 0.001 mm.

-All main components are made of high quality castings from well-established foundries. These are specially processed to avoid any internal stresses in the material ending up in machines that are entirely free of vibrations.

-Simple, stable design with very few movable components resulting in next to no downtime at all do to mechanical problems. Great savings on maintenance costs, as maintenance is limited to cleaning and lubrication alone.
